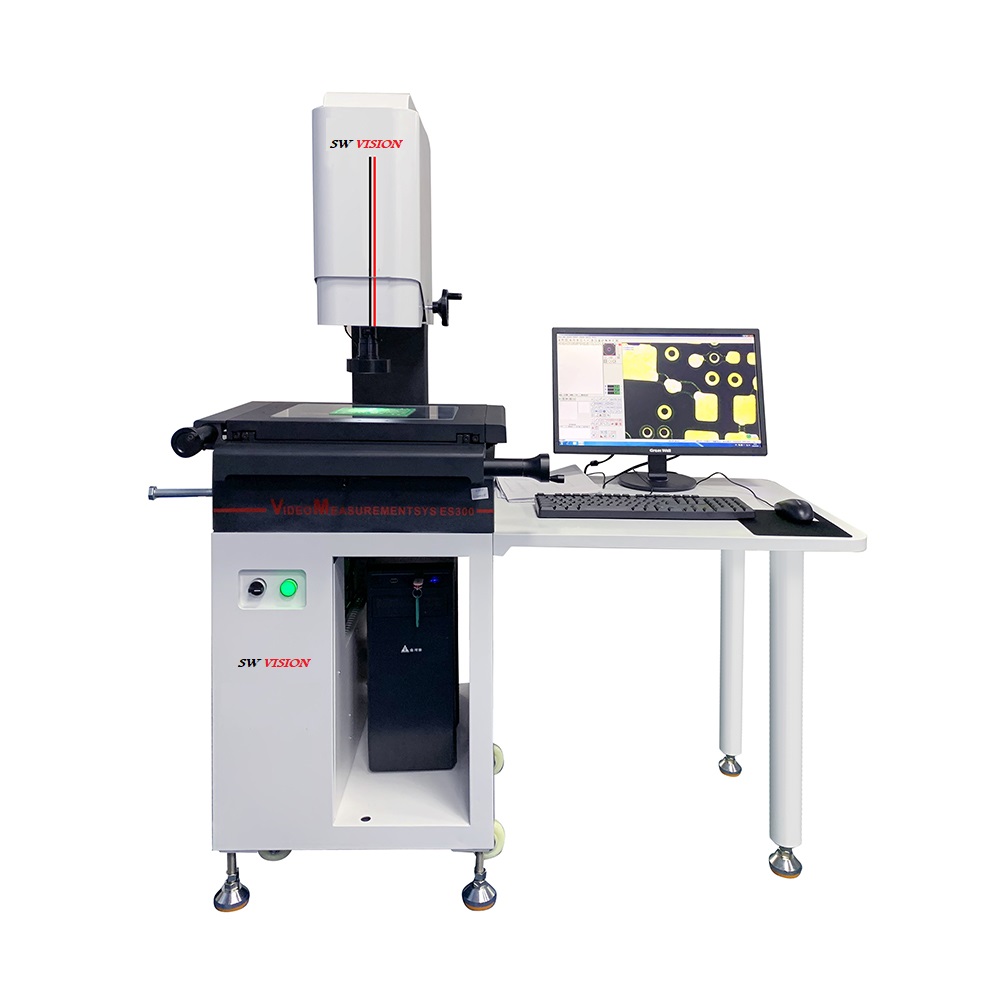

The core structure is a high-precision marble base and column, with infinity telecentric optical system lens barrel and industrial digital camera, toothless screw drive x, y workbench and image processing system. When inspecting products , first place the workpiece to be inspected on the working table of the optical measurement system, after positioning, call out the inspection program of the product to be inspected, the x, y table sends the workpiece under the lens, and the lens captures the line After the image of the board is captured, the processor will move to the next position on the X, Y table to capture, and then perform corresponding calculations. Through continuous image processing, a higher detection speed is obtained.

Product advantage

1. It is characterized by high precision, excellent performance, small footprint , stable and reliable precision;

2. Continuous variable magnification positioning optical zoom lens , a system optimized for high-precision measurement ;

3. Industrial-grade Hikvision million-level digital camera with high resolution, durable and reliable visual imaging system;

4. It can be equipped with multiple sensors, probes and lasers for flatness and step difference measurement
